Wind Pressure On Roof Truss Is

Effective wind area 225 33 sq ft.

Wind pressure on roof truss is.

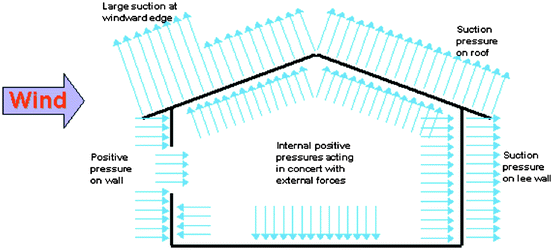

You can demonstrate this to yourself quite easily by trying to carry something large and flat on a windy day. Effective wind area 26ft 2ft or 26ft 26 3 ft 52 ft 2 or 225 33 sq ft. The wind pressure against a roof or entire home can be enormous. Wind loads develop pressure on the wall and roof elements.

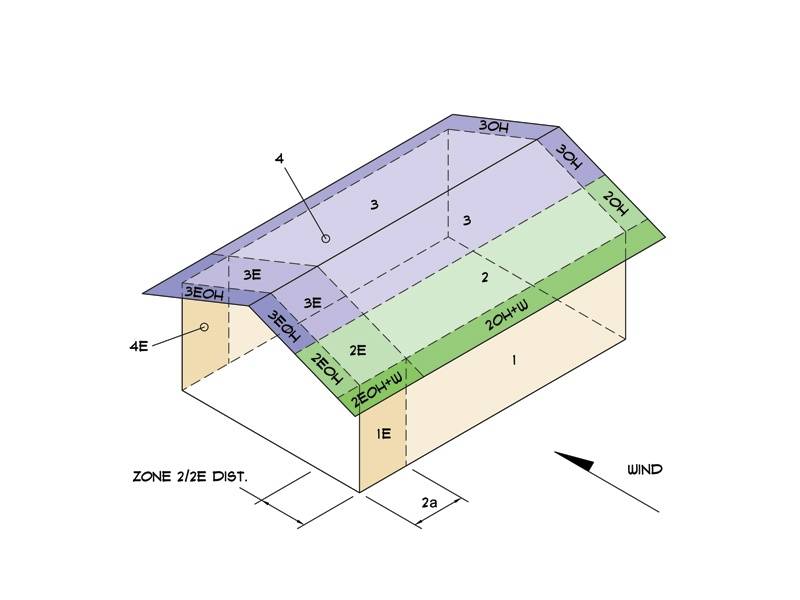

How to calculate wind load on roof truss with detail explanation of is. The remainder of zone 2 2e extending to the ridge line shall use the pressure coefficient gcpf for zone 3 3e. 1 how to draw floor plan by hand. However a truss also receives wind load directly from the roof sheathing i e cladding and therefore acts as a component which puts it into the c c category.

Http goo gl mrgajl for more free video tutorials covering structural design loading this video elaborates the calculation of wind pressure acting on roof. Once the wind speed has been calculated the user can provide additional information regarding the building such as building height type and cladding to get the wind pressure wind load based on asce 7 10 as 1170 and en 1991 provisions. 875 1987 part 3 watch more. This crossover is illustrated in c26 of the commentary for asce 7 which lists roof trusses as examples of both mwfrs and c c bold added to definitions to emphasize key concepts.

The magnitude of this pressure is proportional to the square of the wind speed. Mitek s guide goes on to state. It provides the wind load calculations on uplift leeward windward and roof forces of a building. Purlins c c roof pressure from 30 4 2b the effective wind pressures for zones 1 2 and 3 can be determined.

6b the roof is of 10 roof slope and out of all the incident wind angles the maximum pressure coefficient is found to be as 0 57 which is less than the maximum pressure coefficient of 0 98 by wind tunnel experimental study and the maximum pressure coefficient of 0 91 by cfd simulation study on pyramidal roof of 10 roof slope without opening as described by roy et al. The effective wind area should be the maximum of. Since trusses are spaced at 26ft hence this will be the length of purlins.
